Lighting Control and Synchronization
The CIS achieves optimal performance when using dedicated, synchronized and pre-configured light sources for direct software control.
The system operates via a strobe signal: the CIS sends a strobe-out signal to the lighting controller, which switches the light on and off at the programmed frequency. The light intensity must be adjusted according to the scanning speed: the faster the speed, the greater the light intensity.
Each CIS can manage up to three lighting channels, which can be used synchronously or independently. Available configurations can include, for example, RGB or White/UV/Infrared. Up to three light sources can be selected, combining them, for example, in a configuration with one internal light and two external lights, or with three external lights.
Connecting external third-party lights requires prior evaluation, as native synchronization may not be guaranteed and improperly aligned signals may compromise acquisition.
Operational difference between series

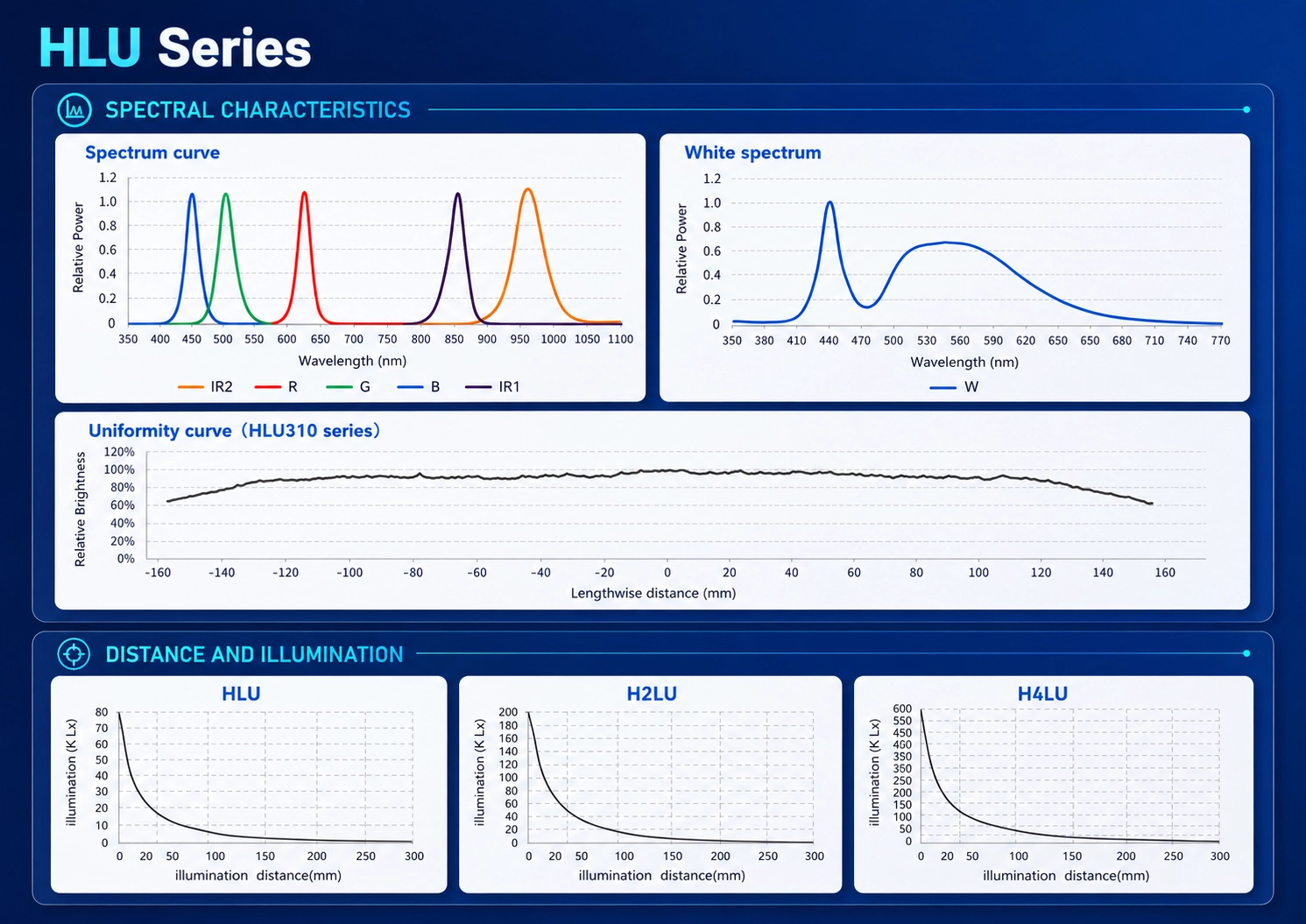

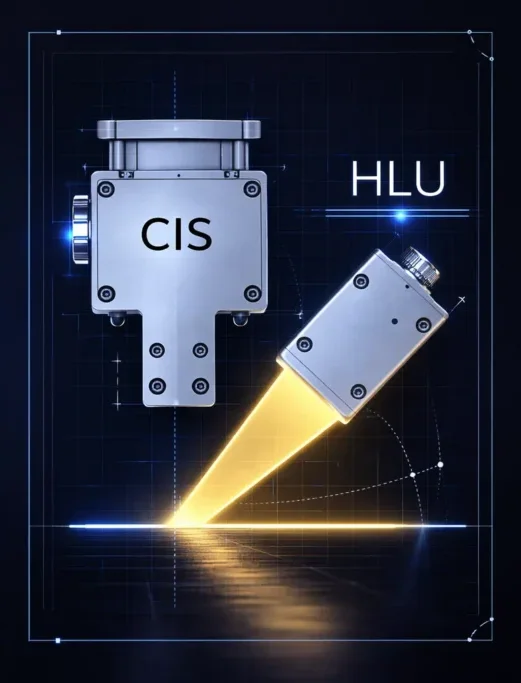

HLU – High Brightness Standard Linear Light
The HLU series is the general linear solution for industrial CIS applications. It is ideal when concentrated, uniform, high-brightness light is required across the entire scan width. It is suitable for reflection inspections, backlighting, and configurations with multiple illumination angles.
Strengths
- high brightness linear light
- high uniformity
- natural cooling / fan cooling
- suitable for white or monochrome configurations
- Available colors: R/G/B/RGB/White/IR/UV
- Recommended working distance: 20–100 mm
- emission width: 100–2500 mm
- standard models from HLU310 to HLU1960
- Customizable widths/dimensions upon request
Typical applications
- glass and automotive glass
- tiles and ceramics
- wooden panels
- stamped metal
- plastic film
- battery film, if directional linear lighting is needed
- multi-light configurations for reflection and transmission

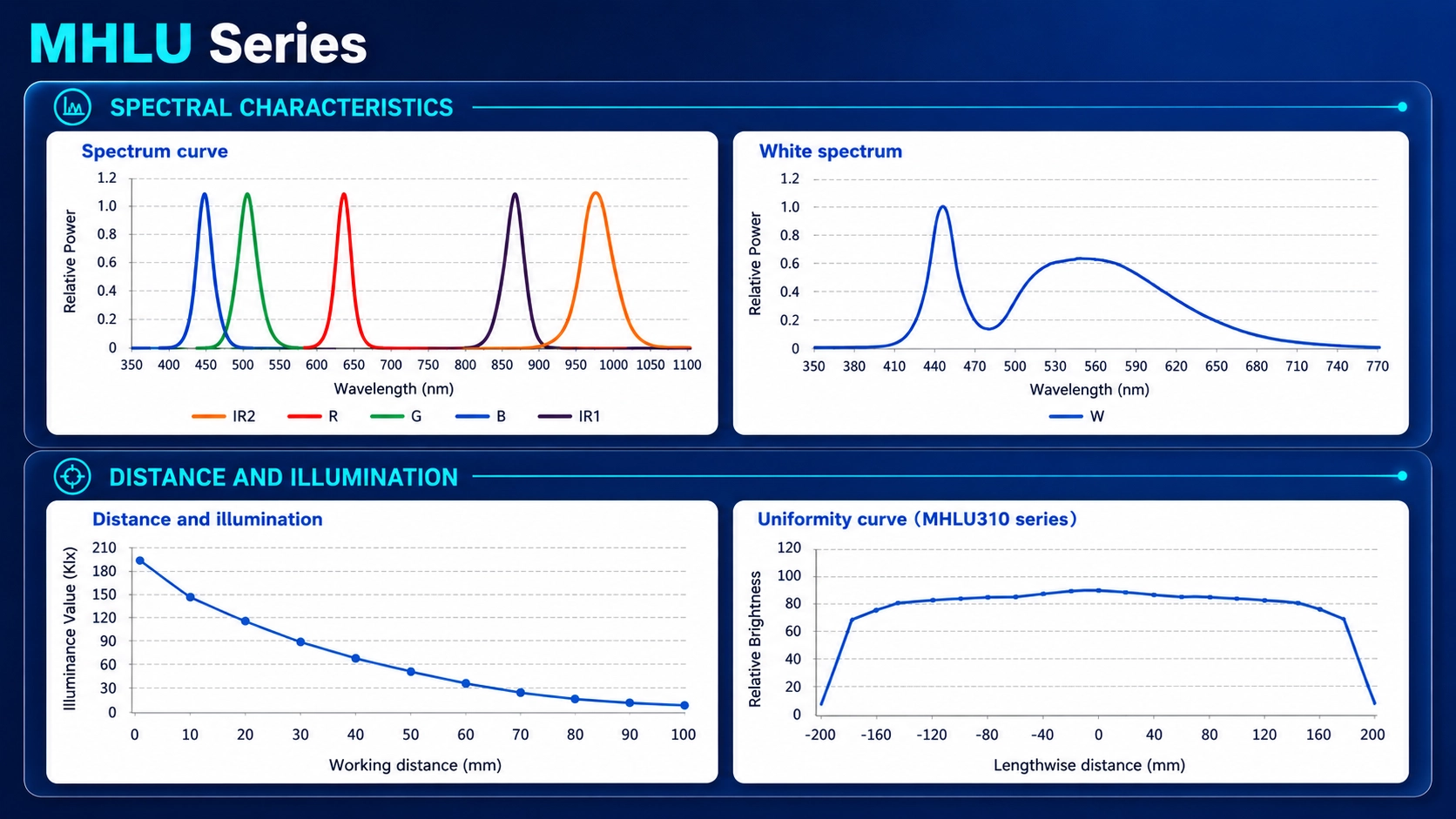

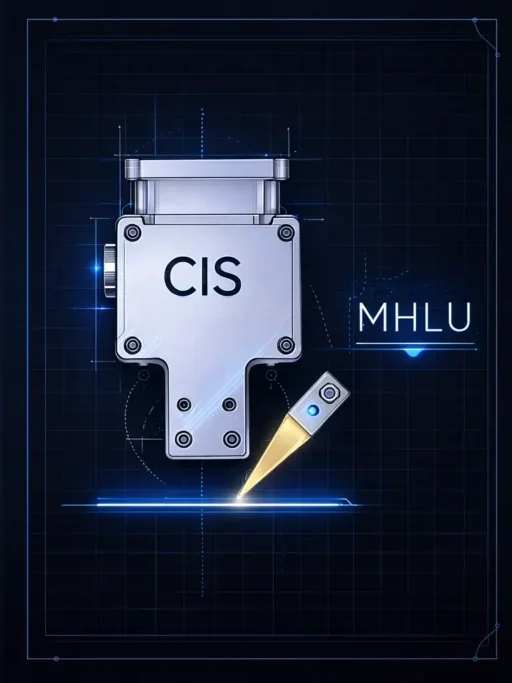

MHLU – Miniature linear light for small spaces
The MHLU series is designed for machines where available space is very limited. It has a very compact profile, approximately 10 mm wide and 20.2 mm high, and can also be mounted in multiple-unit configurations to achieve different lighting angles.
Strengths
- miniaturized design
- high brightness
- high uniformity
- concentrated linear light
- Available colors: W / R / G / B / IR
- standard lengths from MHLU72 to MHLU650
- Recommended working distance: 10–40 mm
- natural cooling
- suitable for installations with multiple lights placed close together
Typical applications
- wafer OCR / notch recognition
- Wafer ID reading with multiple light angles
- notching and lamination on drums
- compact machines where there is no space for traditional camera systems
- small surfaces or localized areas to be precisely illuminated

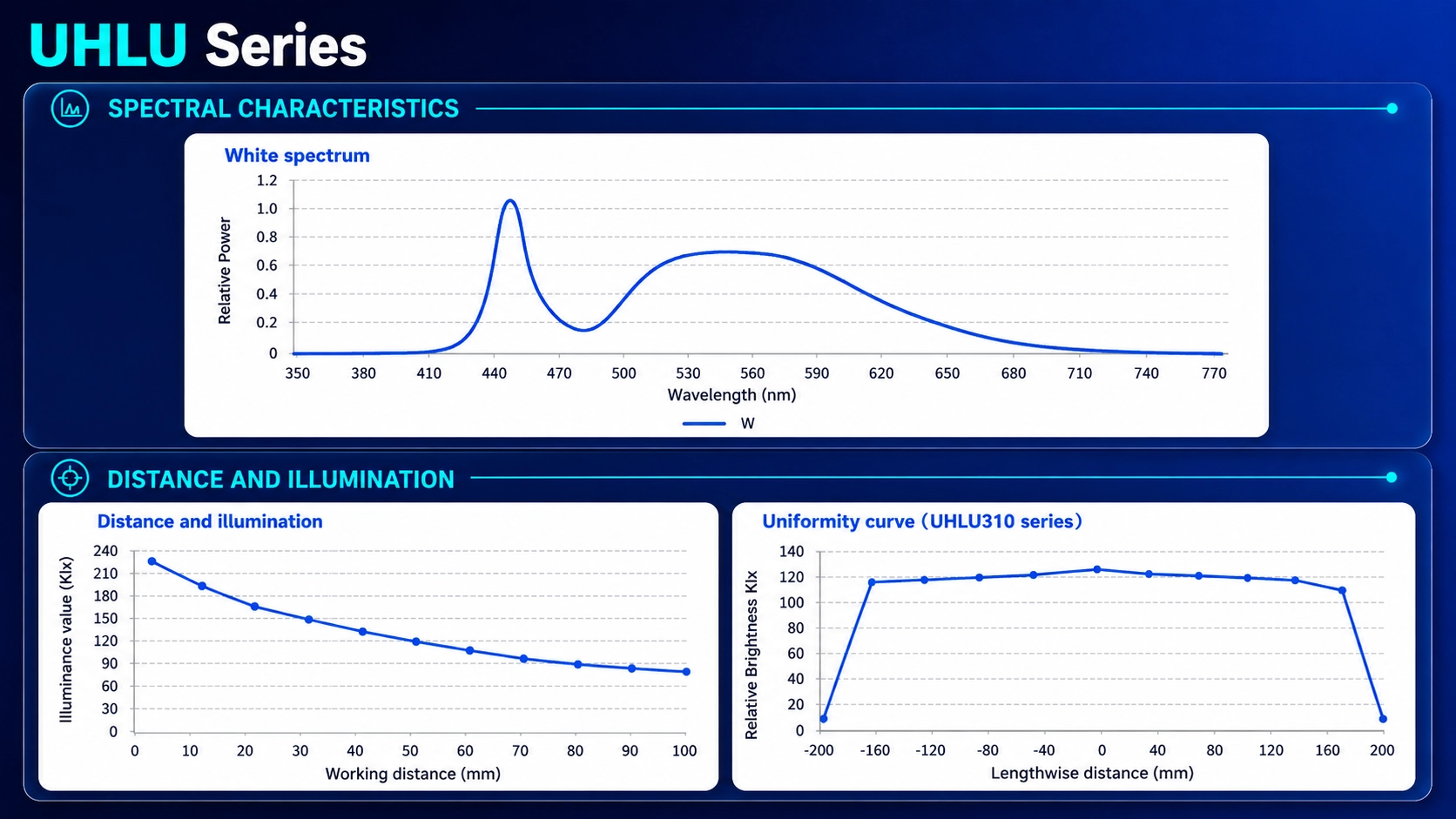

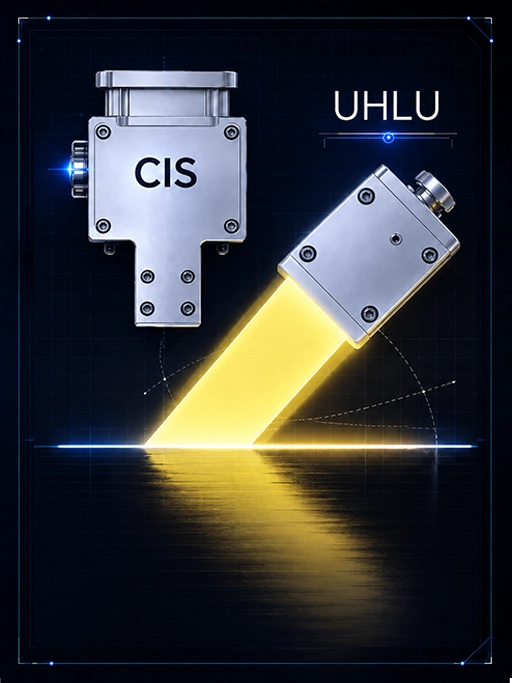

UHLU – Compact ultra high-power light
The UHLU series is a compact, high-power white light source with a larger emitting surface and longer beam distance than miniature lights. It is ideal when higher light intensity is needed in a limited space.
Strengths
- white light
- high brightness
- compact body
- large emitting surface
- long radiation distance
- Recommended working distance: 10–100 mm
- customizable length on request
Typical applications
- high-speed inspections
- low-reflective materials
- applications where more light is needed than an MHLU
- compact spaces requiring high light intensity

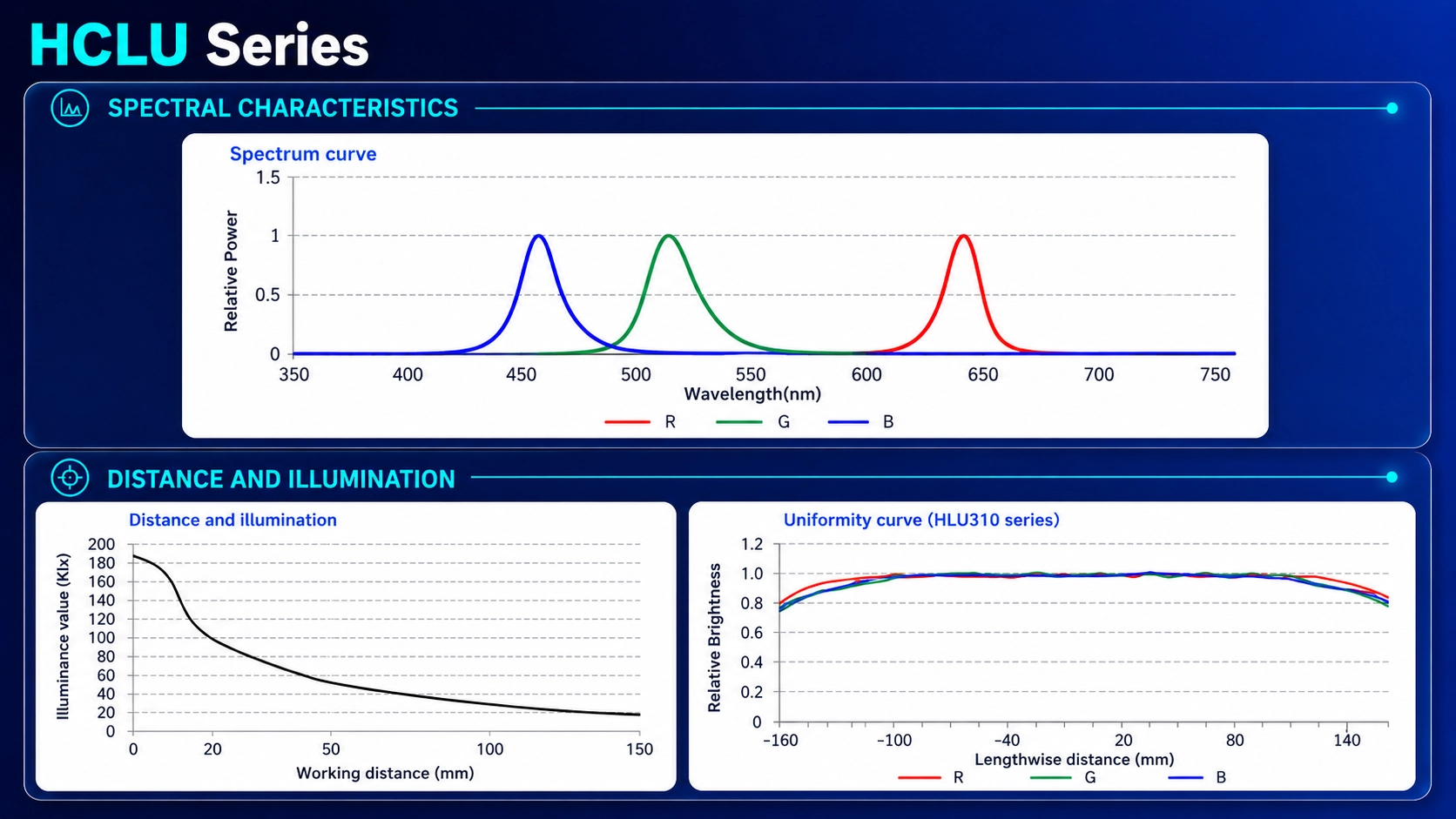

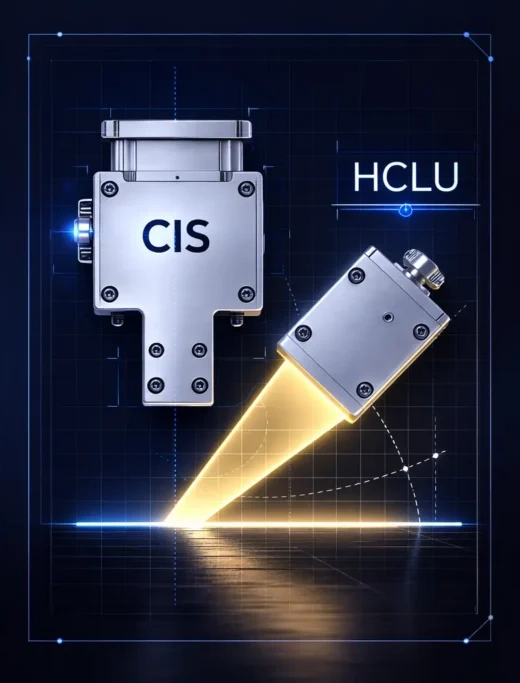

HCLU – High brightness RGB linear light
The HCLU series is the RGB linear solution for applications where color contrast needs to be enhanced. Compared to the standard HLU, the HCLU is specifically designed for Red/Green/Blue light and uses fan cooling.
Strengths
- high brightness RGB light
- concentrated linear lighting
- high uniformity
- colors: Red 620–640 nm, Green 510–530 nm, Blue 450–470 nm
- fan cooling
- emission width: 100–2500 mm
- Recommended working distance: 20–100 mm
- standard models from HCLU310 to HCLU1960
Typical applications
- color printed metal
- print control on reflective materials
- color inspection on packaging, cardboard and printed materials
- applications where color contrast is more important than white luminance alone
- pattern control, color registration, color variations and printing defects

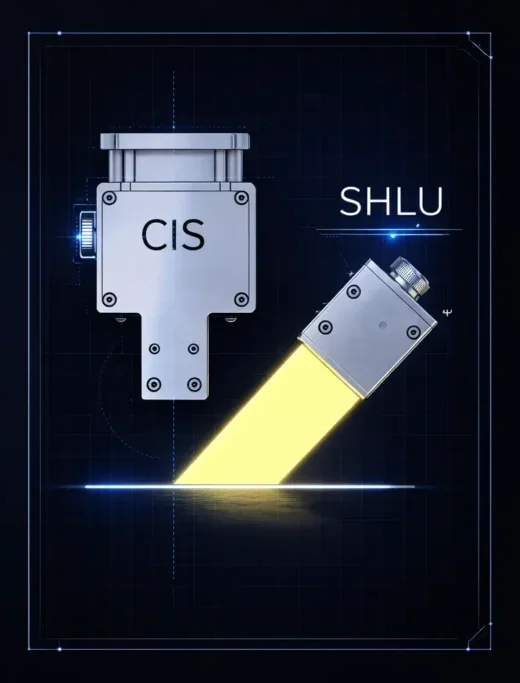

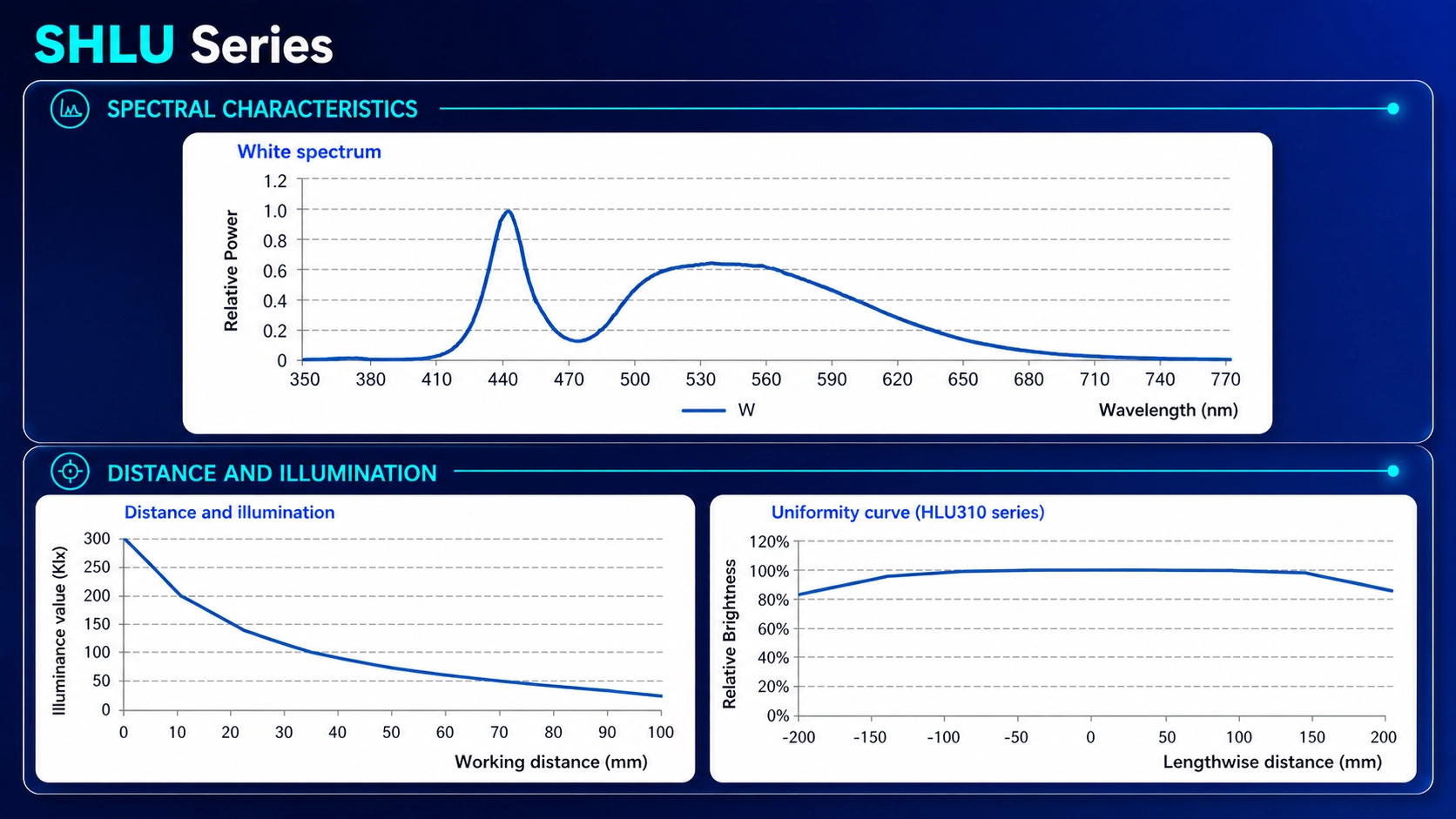

SHLU – High Brightness Surface Light
The SHLU series is a surface light for applications requiring illumination of a larger area, with high uniformity and high luminance. It is particularly suitable when the light angle and distribution need to be softer than a concentrated linear light.
Strengths
- surface white light
- high luminance
- high uniformity
- wide emission
- emission width: 90–2000 mm
- Recommended working distance: 0–100 mm
- Available colors: R/G/B/White/IR
- natural cooling
- suitable for high-speed applications
- standard models from SHLU400 to SHLU1500
Typical applications
- battery foil coating and slitting
- inspection of films and large surfaces
- wooden panels
- materials where more diffused lighting is needed
- applications where it is important to reduce installation and lighting adjustment times

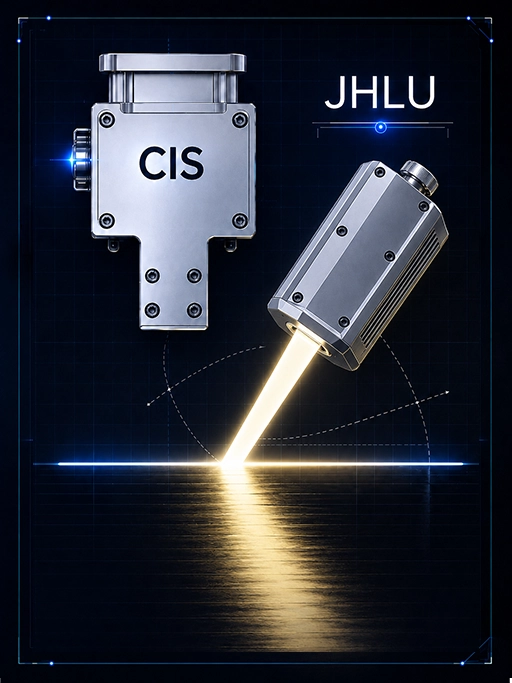

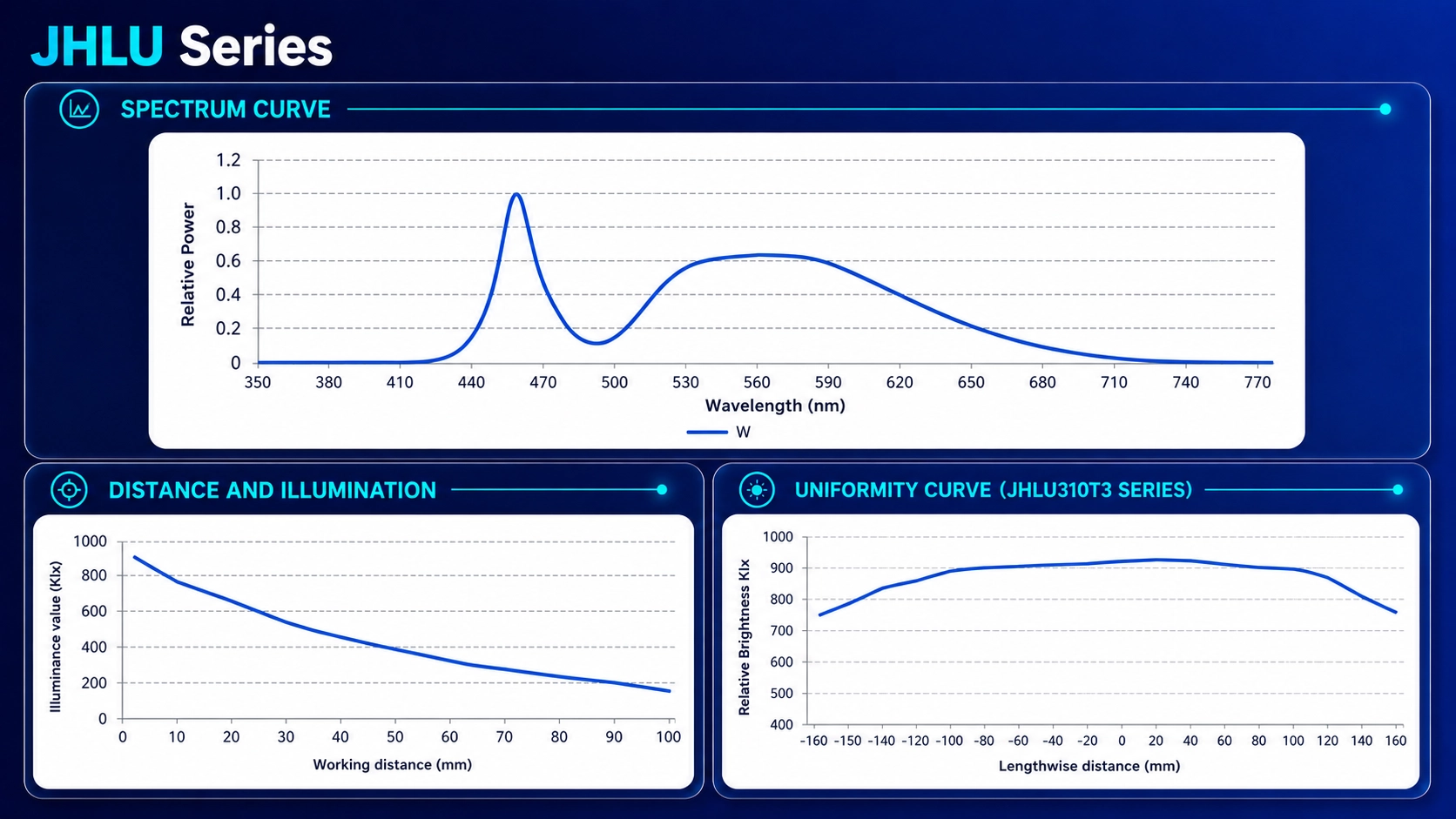

JHLU – High Brightness Focused Light
The JHLU series is a focused white light, designed for applications requiring a more focused illumination than a standard linear light. It is useful when a sharper beam is required and contrast is increased in a specific area.
Strengths
- white light
- high brightness
- concentrated/focused linear lighting
- natural cooling
- Recommended working distance: 20–100 mm
- standard models from JHLU310 to JHLU1200
Typical applications
- localized surface defects
- dimensional controls requiring sharper contrast
- materials where diffused light does not highlight the defect sufficiently
- configurations where more concentrated light along the scan line is needed

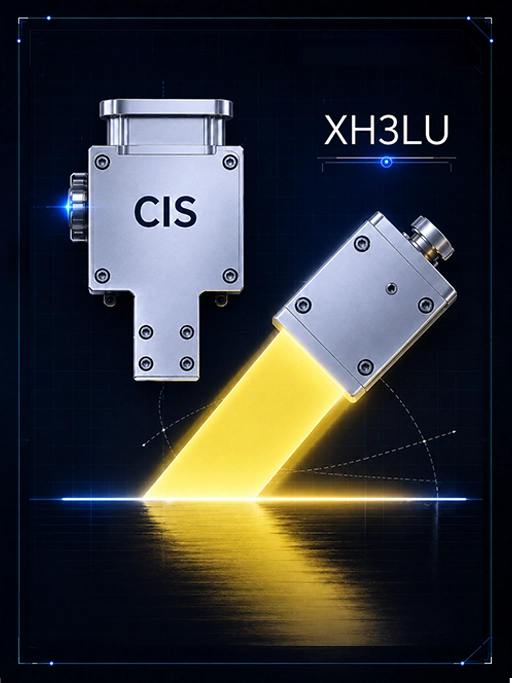

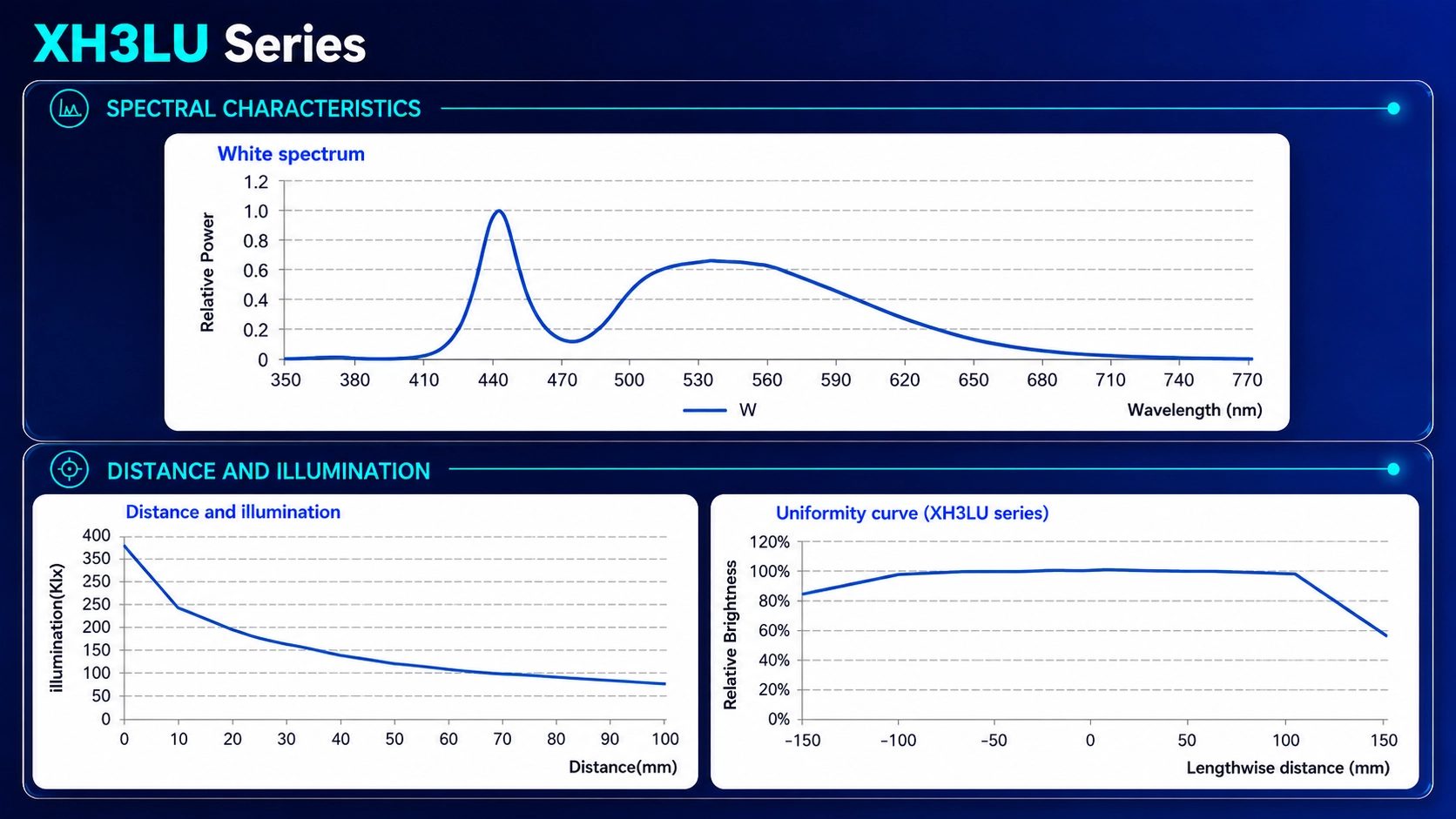

XH3LU – 45° oblique light
The XH3LU series is a 45° oblique white light designed to highlight defects that are best seen with side or angled lighting. It is useful when scratches, bumps, textures, or surface defects are not sufficiently visible with frontal lighting.
Strengths
- white light
- high brightness
- 45° lighting
- long radiation distance
- natural cooling
- Recommended working distance: 20–100 mm
- standard models from XH3LU310 to XH3LU2000
Typical applications
- surface scratches
- defects on flat materials
- textures, reliefs, depressions and contaminations
- dark field / grazing lighting
- metal, ceramic, film and materials where the defect must be highlighted by shadow or lateral reflection

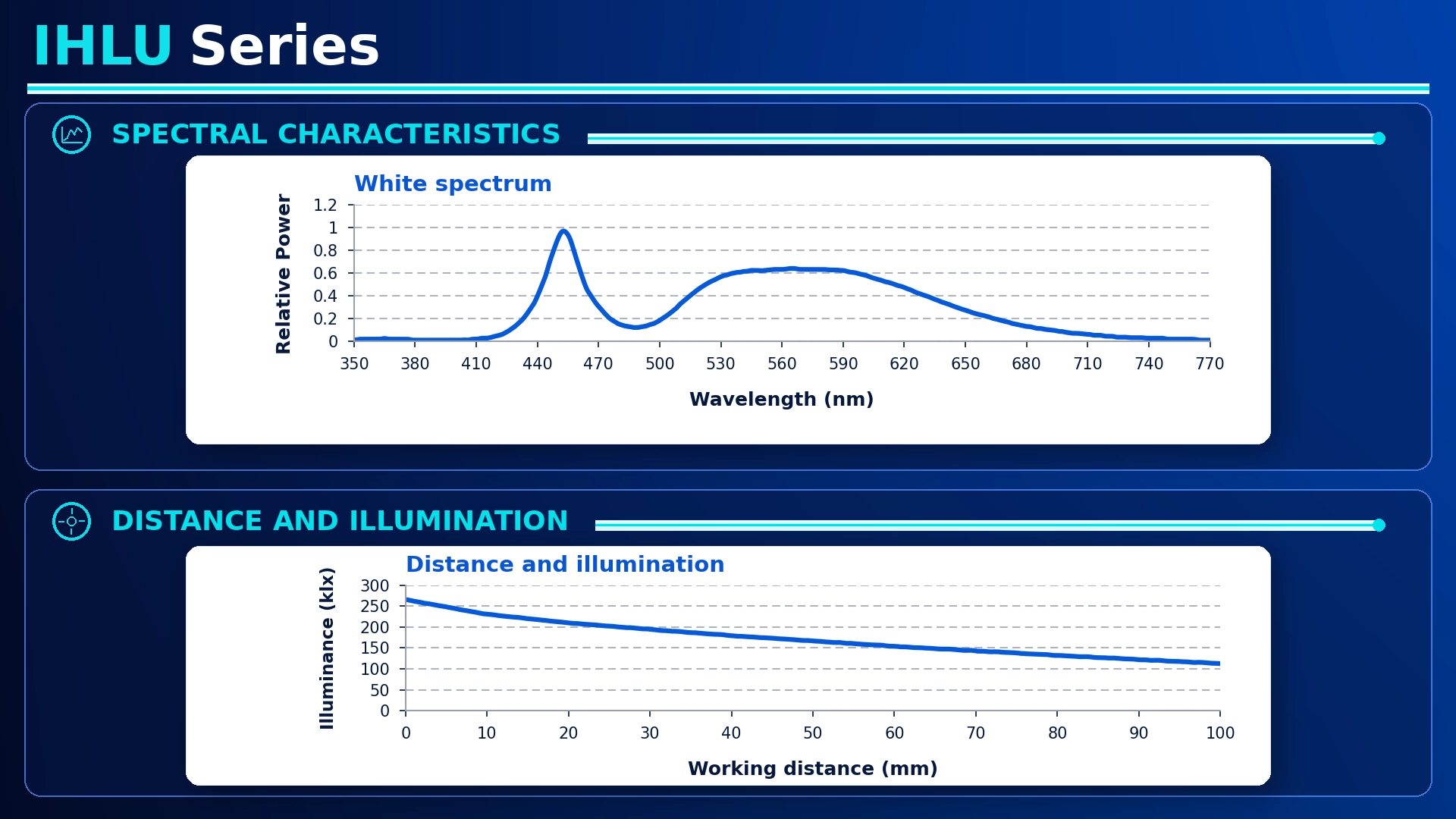

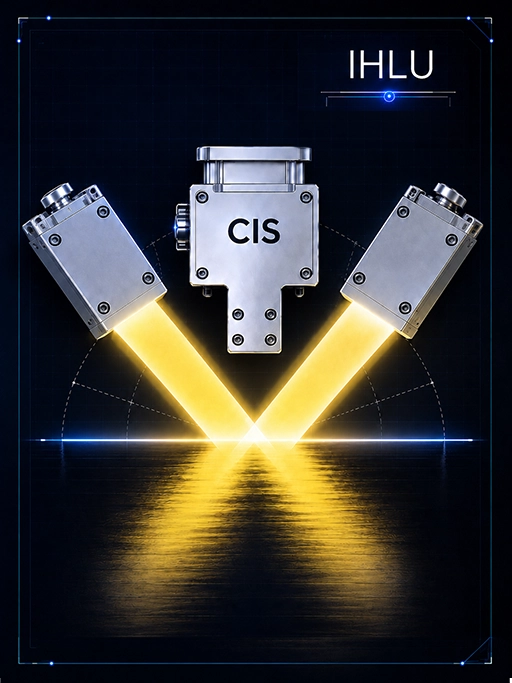

IHLU – Cross Light
The IHLU series is designed for cross-illumination setups. It’s useful when a single light direction isn’t sufficient and you need to increase image stability by reducing shadows, unwanted reflections, or directional artifacts.
Strengths
- white light
- high brightness
- concentrated linear lighting
- natural cooling
- Recommended working distance: 20–100 mm
- standard models: IH2LU310 and IH2LU650
Typical applications
- materials with directional reflection
- surfaces where the defect changes visibility depending on the angle of light
- multi-angle configurations
- inspections where greater contrast stability along the scan line is required
