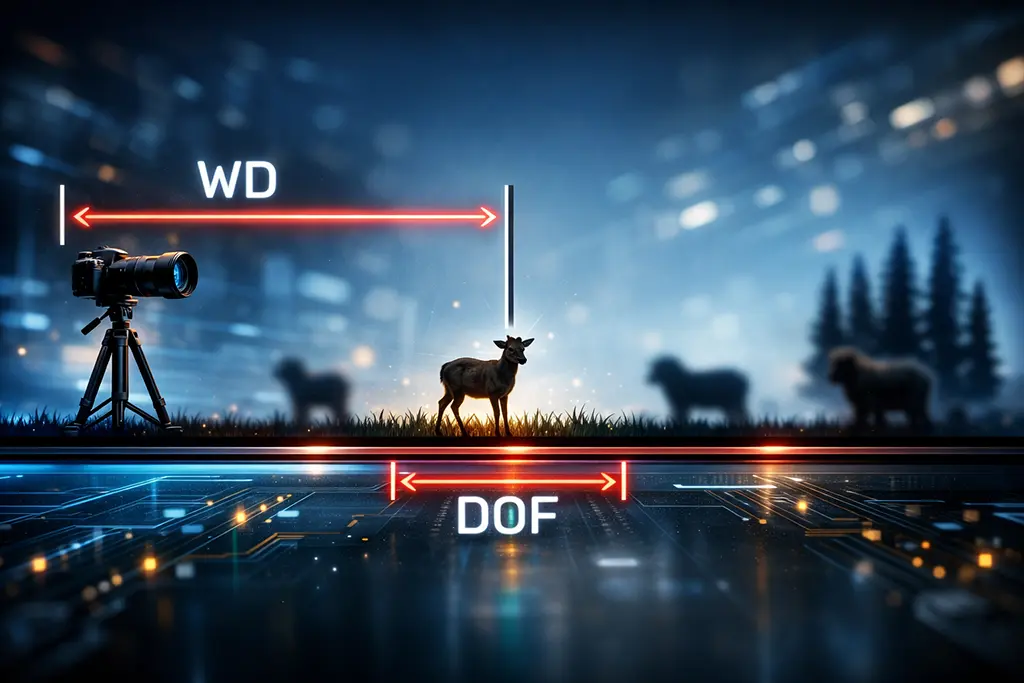

Working distance and depth of field

There are predefined distances at which the CIS must be mounted in relation to the object to be scanned.
Each Working Distance (WD) , also referred to as Focal Distance , is determined and compensated for by the length of the lenses within the Rod Lens Array .
For any specific mounting distance, there is also an optimal range within which a sharp and accurate image can be obtained: this range is called the Depth of Focus (DOF) .
